It all flows downhill - Factory Drainage
Once Drainage & Flooring have been installed, it is very hard to change, so it’s critical that all drainage & floor slopes are specified and installed to meet current & expected future processes. We hear too many horror stories about water pooling or running away from drains, yet the irony is that it costs no extra money to get it right in the first place!
There are two main types of floor drains - Pit drains & Strip drains. While strip drains seem to be an ideal solution for quick wash-downs, they do present hygiene issues that you need to be aware of which may make them unsuitable in rooms that are High Care or High Risk areas.
Drain locations are critical - in terms of locality to equipment and water points. Drain locations must be well thought through to allow for pit drains to take water away from specific drain points, such as CIP drain valves or cooker drains.
With the correct floor slopes - enough for water to fall away but not steep enough to make traversing the room difficult - there will be no water pooling on floor surfaces. Floor slopes can be configured such that strip drain locations have been considered not suitable and pit drains can be successfully utilised in their place. Slopes will typically range from 1:50 to 1:100. We aim for around 1:80 where possible.
Example of Pit Drain
Example of Strip Drain

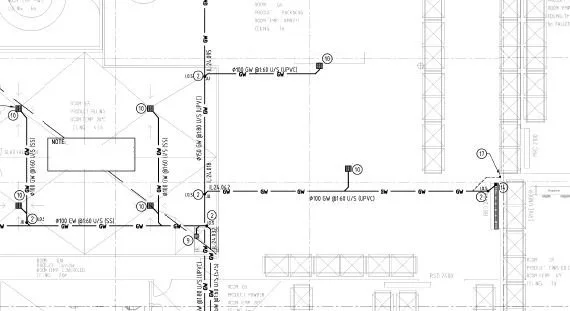

Example of a hydraulics / drainage drawing
To meet High-Risk & High-Care requirements of retailers and local water authorities, there are specific details in the hydraulic design that need to be incorporated. RMR Process can assist with achieving this compliance. Other considerations for drainage are water temperature, flow rates & chemicals going down the drain and the effects of these variables on each component.
Contact us should you require any assistance on any of the details above - we can help weave a path through the minefield that is drainage.
